Keetec BS 420 OEM parking assistant BS420OEM

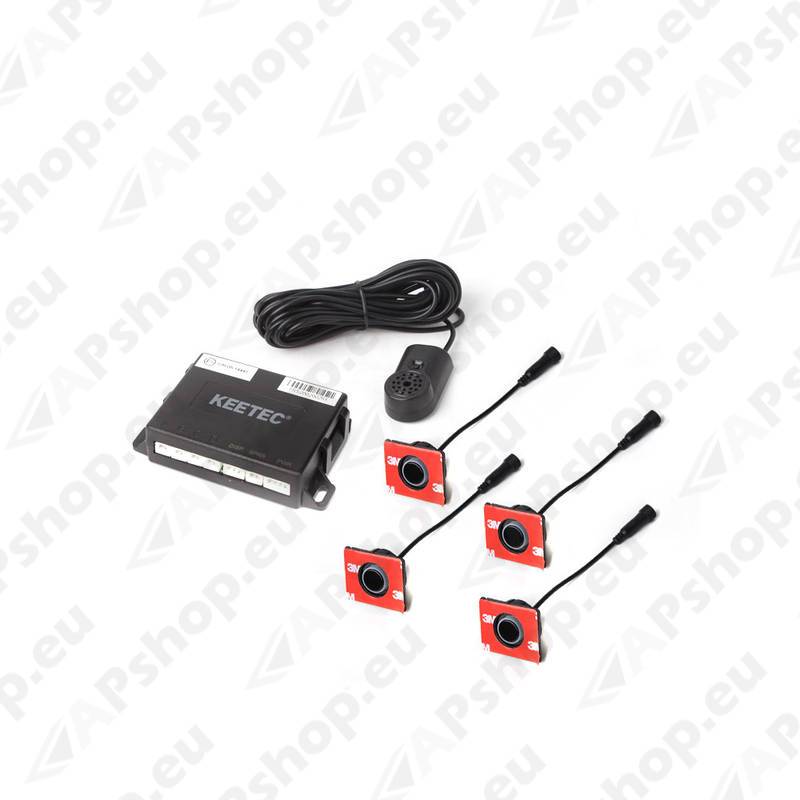

Parking assistant KEETEC with the option to install as Rear or Front, with 4 black adjustable flush sensors 16mm and buzzer. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. The unit is designed for 12V/24V on board voltage cars.

The length of the wires to the sensors is 2.3 m.

When installing the parking assist in the front bumper, it is necessary to use EXT CABLE KIT extension cables.

System Description:

• sensors with fixed assembly to the bumper
• fast obstacle detection
• excellent coverage of the entire area behind or before the vehicle
• when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
• auto detection (automatic identification of the defective sensor)
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• mounting hole 16 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary

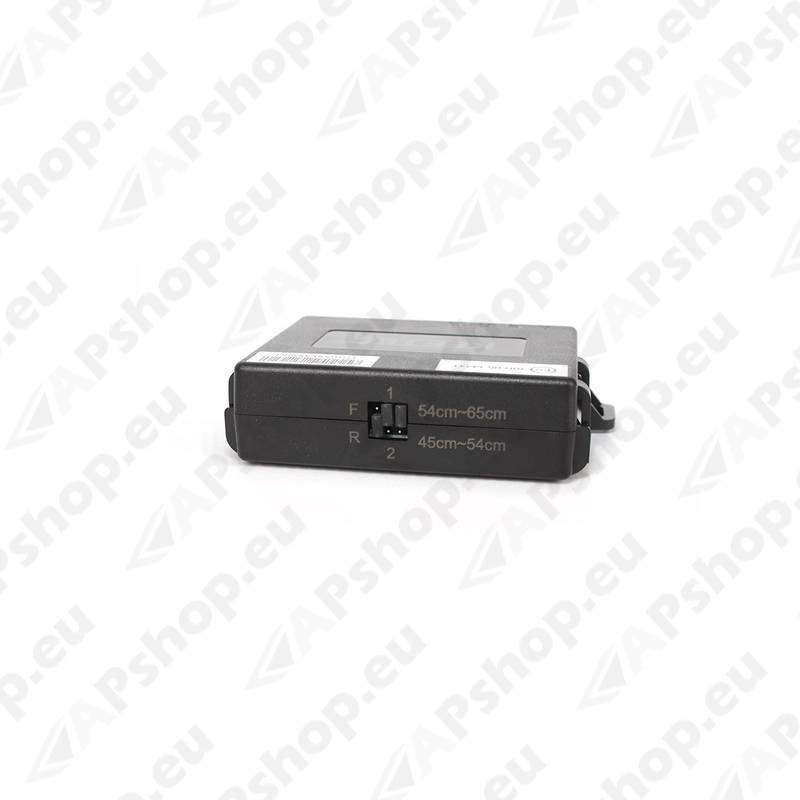

• adjustable sensitivity of the sensors on the control unit (2 levels)
• the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
• with additional ACC wire (pink wire) for stable power supply(optional connection)
• adjustable volume directly on the buzzer body (3 levels)
• control unit is not waterproof, must be installed in dry place

Technical parameters:

• Operating voltage: 9 ~ 27V DC
• Working current : < 250Ma
• Speaker: 80 ± 10dB
• Detection range rear: 0.3 ~ 2.59 m
• Detection range front : 0,3 ~ 0,99 m

Operating temperature

• ECU: -40°C ~ +80°C
• Display: -20°C ~ +70°C
• Sensor: -40°C ~ +80°C
